Product Summary
The RTL8019AS is a highly integrated Ethernet Controller which offers a simple solution to implement a Plug and Play NE2000 compatible adapter with full-duplex and power down features. With the three level power down control features, the RTL8019AS is made to be an ideal choice of the network device for a GREEN PC system. The full-duplex function enables simultaneously transmission and reception on the twisted-pair link to a full-duplex Ethernet switching hub. This feature of the RTL8019AS not only increases the channel bandwidth from 10 to 20 Mbps but also avoids the performance degrading problem due to the channel contention characteristics of the Ethernet CSMA/CD protocol. For special applications not to be used as a Plug and Play compatible device, the RTL8019AS also supports the jumper and proprietary jumperless options.
Parametrics
RTL8019AS absolute maximum ratings: (1)Operating Temperature: 0& to 70℃; (2)Storage Temperature: -65& to 140℃; (3)All Outputs and Supply Voltages, with respect to Ground: -0.5V to 7V.
Features
RTL8019AS features: (1)100-pin PQFP; (2)RTL8019 software compatible ; (3)Supports PnP auto detect mode; (4)Compliant to Ethernet II and IEEE802.3 10Base5, 10Base2, 10Base; (5)Software compatible with NE2000 on both 8 and 16-bit slots; (6)Supports both jumper and jumperless modes; (7)Supports Microsoft Plug and Play configuration for jumperless mode; (8)Supports Full-Duplex Ethernet function to double channel bandwidth; (9)Built-in data prefetch function to improve performance; (10)Supports UTP, AUI & BNC auto-detect; (11)Supports auto polarity correction for 10BaseT; (12)Support 8 IRQ lines.

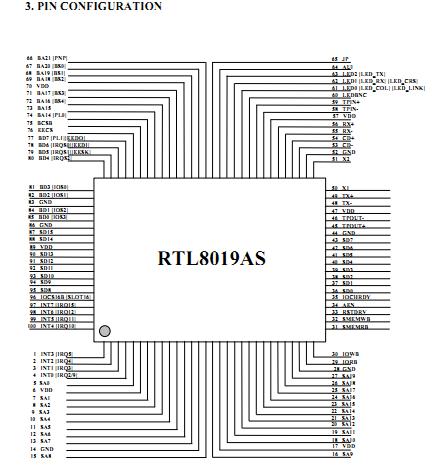

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 RTL8019AS |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RTL8019AS-LF |
Other |
|
Data Sheet |
Negotiable |
|
||||
