Product Summary
The SST39SF020A-70-4C-NHE is a multi-purpose flash. The SST39SF020A-70-4C-NHE is a CMOS Multi-Purpose Flash (MPF) manufactured with SSTs proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39SF020A-70-4C-NHE writes (Program or Erase) with a 4.5-5.5V power supply. The SST39SF020A-70-4C-NHE conforms to JEDEC standard pinouts for x8 memories.
Parametrics
SST39SF020A-70-4C-NHE absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Through Hold Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (9)Output Short Circuit Current: 100 mA.
Features
SST39SF020A-70-4C-NHE features: (1)Organized as 128K x8 / 256K x8 / 512K x8; (2)Single 4.5-5.5V Read and Write Operations; (3)Superior Reliability; (4)Low Power Consumption(typical values at 14 MHz); (5)Sector-Erase Capability; (6)Latched Address and Data; (7)Automatic Write Timing; (8)Fast Erase and Byte-Program; (9)End-of-Write Detection; (10)All devices are RoHS compliant; (11)All non-Pb (lead-free) devices are RoHS compliant.

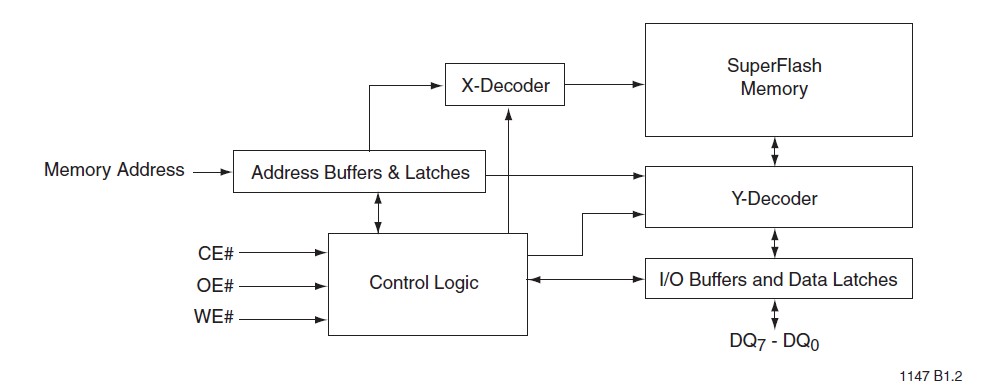

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39SF020A-70-4C-NHE |
Microchip Technology |
Flash 256K X 8 70ns |
Data Sheet |
|
|
||||||||||||
|
SST39SF020A-70-4C-NHE-T |
Microchip Technology |
Flash 4.5 to 5.5 2Mbit Multi-Purpose Flash |
Data Sheet |
|
|
||||||||||||
