DCP022415DP

2W, isolated, unregulated, DC/DC converter, SO-28, Thermal Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.80~4.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.80~4.90

PartNumber:: DCP022415DP

Brand:: Burr-Brown Corporation - BB | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-02

From Other Seller

Part Number:DCP022415DP
US $4.80 - 4.90
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

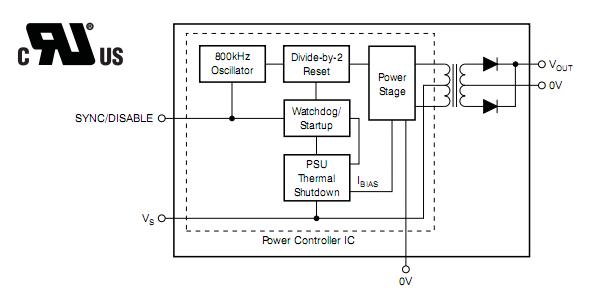

The DCP022415DP is a 2W, isolated, unregulated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP022415DP provides extra features such as output disable and synchronization of switching frequencies. The use of a highly integrated package design results in highly reliable products with power densities of 79W/in 3 (4.8W/cm 3) for DIP-14, and 106W/in 3(6.5W/cm 3) for SO-28. This combination of features and small size makes the DCP02 suitable for a wide range of applications. The applications of the DCP022415DP are Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation, Test Equipment.

Parametrics

DCP022415DP absolute maximum ratings: (1)Input Voltage: 5V input models:7V, 12V input models:15V, 15V input models:18V, 24V input models:29V; (2)Storage temperature range:-60℃ to +125℃.

Features

DCP022415DP features: (1)Up To 89% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)SO-28 Power Density of 106W/in 3(6.5W/cm 3); (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC 14-Pin and SO-28 Packages.
