Product Summary
The SS566AT is a surface mount sensor. The temperature compensated Hall effect sensor of the SS566AT consists of a quad Hall sensing element in a square integrated circuit chip, which is then encapsulated in a glass-filled thermoset molding material. The small SOT89 style package surface mounts on PC boards andflexible circuits.
Parametrics
SS566AT absolute maximum ratings: (1)Supply Voltage: 3.8 Vdc to 30.0 Vdc; (2)Output Type: Sink; (3)Magnetic Actuation Type: Bipolar Latch; (4)Operating Temperature Range: -40 ℃ to 150 ℃ [-40 °F to 302 °F]; (5)Output Voltage: 0.4 Vdc max.; (6)Switching Time Rise (10 % to 90 %): 1.5 μs max.; (7)Switching Time Fall (90 % to 10 %): 1.5 μs max.; (8)Availability: Global; (9)Supply Current (max. @ 25 ℃): 7.5 mA typ.; (10)Output Current (max.): 20 mA.
Features
SS566AT features: (1)Quad Haldesign virtually eliminates mechanicastress effects; (2)Temperature compensated magnetics; (3)Super high sensitivity available; (4)Symmetry of operate/release points about zero gauss(bipolar/latching); (5)Low current consumption; (6)High output current capability.

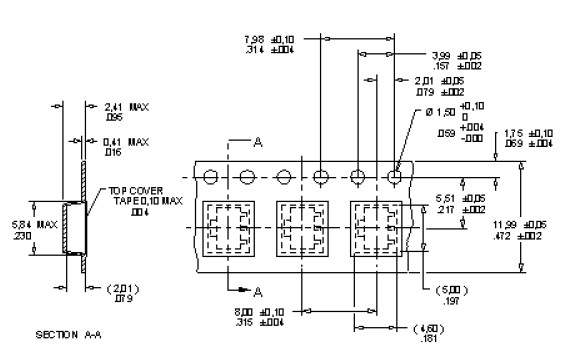

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS566AT |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors Hall Latching SOT-89B |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
SS561AT |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors Hall-Effect Digital Position Sensor |
Data Sheet |
|
|
||||||||||||
 |
SS561A-T |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS561GT |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors COMM SOLID STATE/MAG |
Data Sheet |
|
|
||||||||||||
|
SS566AT |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors Hall Latching SOT-89B |
Data Sheet |
|
|
||||||||||||
|
SS566A-T |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS566GT |
Honeywell |
Board Mount Hall Effect / Magnetic Sensors COMM SOLID STATE/MAG |
Data Sheet |
|
|
||||||||||||
