DS1307ZN

64 x 8, Serial, I2C Real-Time Clock, SOP8, 56-Byte, Battery-Backed, -0.5V to +7.0V, 4.5 to 5.5 V Supply Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.30

PartNumber:: DS1307ZN

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-27

From Other Seller

Part Number:DS1307ZN
US $0.15 - 0.30
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

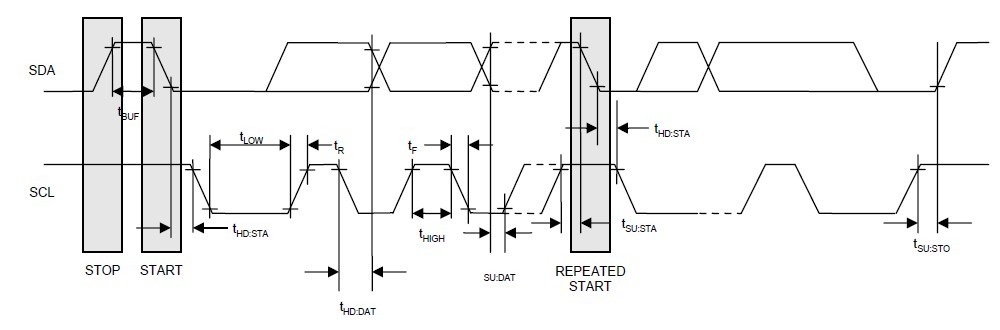

The DS1307ZN real-time clock (RTC) is a low-power, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I2C, bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The DS1307ZN has a built-in power-sense circuit that detects power failures and automatically switches to the backup supply. Timekeeping operation continues while the part operates from the backup supply.

Parametrics

DS1307ZN absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature Range (Noncondensing), Commercial: 0℃ to +70℃; (3)Industrial: -40℃ to +85℃; (4)Storage Temperature Range: -55℃ to +125℃; (5)Soldering Temperature (DIP, leads): +260℃ for 10 seconds; (6)Soldering Temperature (surface mount): See JPC/JEDEC Standard J-STD-020.

Features

DS1307ZN features: (1)Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the week, and Year with Leap-Year Compensation Valid Up to 2100; (2)56-Byte, Battery-Backed, Nonvolatile (NV) RAM for Data Storage; (3)I2C Serial Interface; (4)Programmable Square-Wave Output Signal; (5)Automatic Power-Fail Detect and Switch Circuitry; (6)Consumes Less than 500nA in Battery-Backup Mode with Oscillator Running; (7)Optional Industrial Temperature Range: -40℃ to +85℃; (8)Available in 8-Pin Plastic DIP or SO; (9)Underwriters Laboratory (UL) Recognized.
