Product Summary
The HDSP-5603 is a seven segment display. The 14.2 mm (0.56 inch) LED seven segment display HDSP-5603 is designed for viewing distances up to 7 metres (23 feet). The HDSP-5603 uses an industry standard size package and pinout. Both the numeric and ± 1 overflow devices feature a right hand decimal point. The HDSP-5603 is available as either common anode or common cathode.
Parametrics
HDSP-5603 absolute maximum ratings: (1)Operating Temperature Range -20 to +100[9] -40 to +100 ℃; (2)Storage Temperature Range -55 to +100 ℃; (3)Reverse Voltage per Segment or DP 3.0 V; (4)Lead Solder Temperature for 3 Seconds 260 ℃; (5)Average Power per Segment or DP: 105 mW; (6)Peak Forward Current per Segment or DP: 90 mA; (7)DC Forward Current per Segment or DP: 3018 mA.
Features
HDSP-5603 features: (1)Industry Standard Size; (2)Industry Standard Pinout; (3)Excellent Appearance; (4)Design Flexibility; (5)High Light Output; (6)High Peak Current; (7)Excellent for Long Digit String Multiplexing; (8)Intensity and Color Selection Option; (9)Sunlight Viewable AlGaAs.

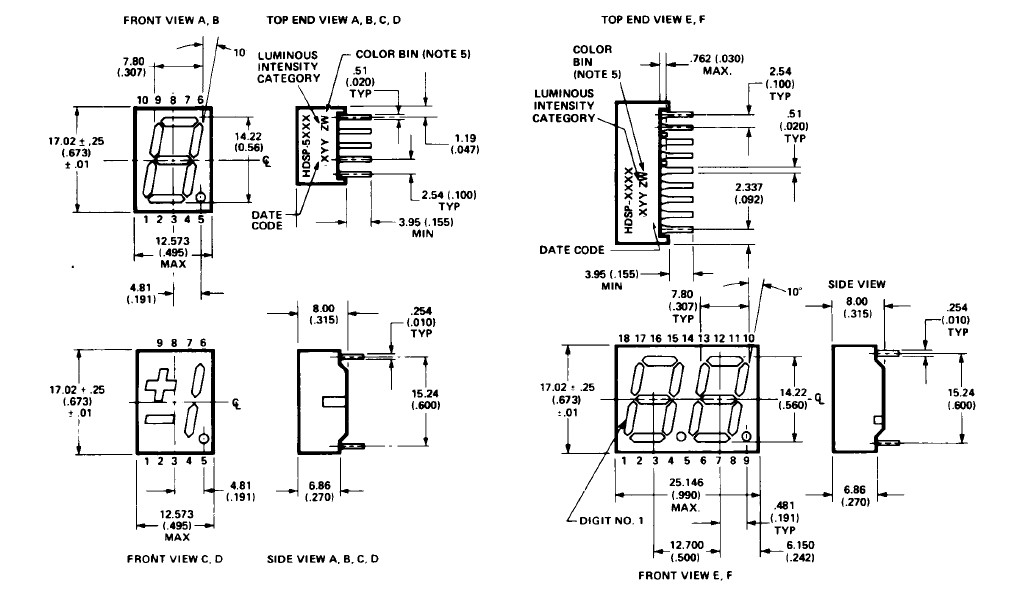

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HDSP-5603 |
Avago Technologies |
LED Displays & Accessories Green 571nm 0.56in 7 Segment |
Data Sheet |
|
|
||||||||||||
|
HDSP-5603-GH000 |
Avago Technologies |
LED Displays & Accessories Green 571nm 0.56in 7 Segment |
Data Sheet |
|
|
||||||||||||
