Product Summary
The EN25F40-100GCP is a 4M-bit (512K-byte) Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The EN25F40-100GCP is designed to allow either single Sector at a time or full chip erase operation. The EN25F40-100GCP can be configured to protect part of the memory as the software protected mode. The EN25F40-100GCP can sustain a minimum of 100K program/erase cycles on each sector.
Parametrics
EN25F40-100GCP absolute maximum ratings: (1)Storage Temperature: -65 to +125℃; (2)Plastic Packages: -65 to +125℃; (3)Output Short Circuit Current: 200 mA; (4)Input and Output Voltage (with respect to ground): -0.5 to +4.0 V; (5)Vcc: -0.5 to +4.0 V.
Features
EN25F40-100GCP features: (1)Single power supply operation : Full voltage range: 2.7-3.6 volt; (2)4 Mbit Serial Flash: 4 M-bit/512 K-byte/2048 pages; 256 bytes per programmable page; (3)High performance: 100MHz clock rate; (4)Low power consumption: 5 mA typical active current; 1 μA typical power down current; (5)Uniform Sector Architecture: 128 sectors of 4-Kbyte; 8 blocks of 64-Kbyte; Any sector or block can be erased individually; (6)Software and Hardware Write Protection: Write Protect all or portion of memory via software; Enable/Disable protection with WP# pin.

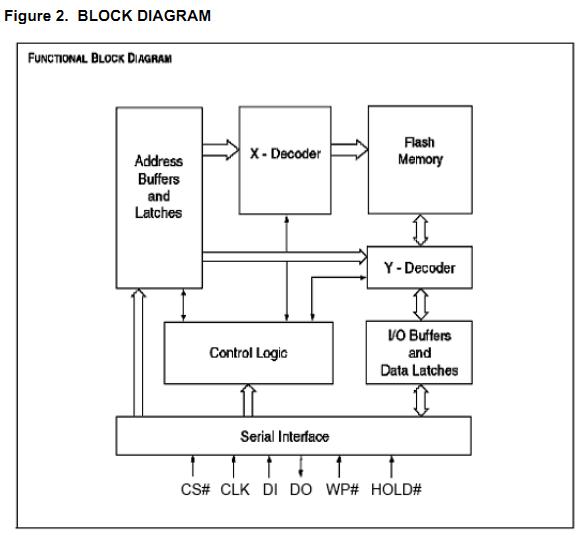

Diagrams
 |
