EPCS1SI8N

Serial Configuration Devices, SOIC8, Easy-to-use, four-pin interface, 2.7-V to 3.6-V operation, Low cost, low-pin count

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.55

PartNumber:: EPCS1SI8N

Brand:: Altera Corporation - ALTR | Pack: SOIC | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-23

From Other Seller

Part Number:EPCS1SI8N
US $0.35 - 0.55
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

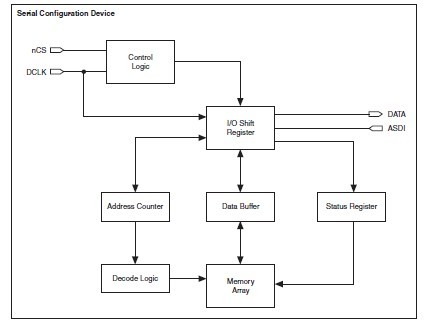

With SRAM-based devices that support active serial configuration, configuration data must be reloaded each time the EPCS1SI8N powers up, the system reconfigures, or when new configuration data is required. Serial configuration EPCS1SI8N is a flash memory device with a serial interface that can store configuration data for FPGA devices that support active serial configuration and reload the data to the device upon power-up or reconfiguration.

Parametrics

EPCS1SI8N absolute maximum ratings: (1)Supply voltage for EPCS1, EPCS4, and EPCS16, With respect to ground: -0.6 to 4.0 V; (2)Supply voltage for EPCS64 and EPCS128, With respect to ground: -0.2 to 4.0 V; (3)VI DC input voltage for EPCS1, EPCS4, and EPCS16, With respect to ground: -0.6 to 4.0 V; (4)DC input voltage for EPCS64 and EPCS128, With respect to ground: -0.5 to 4.0 V; (5)IMAX DC VCC or GND current: 15 mA; (6)IOUT DC output current per pin: -25 to 25 mA; (7)PD Power dissipation: 54 mW; (8)TSTG Storage temperature No bias: -65 to 150 ℃; (9)TAMB Ambient temperature Under bias: -65 to 135 ℃; (10)TJ Junction temperature Under bias: 135 ℃.

Features

EPCS1SI8N features: (1)Easy-to-use four-pin interface; (2)Low cost, low-pin count, and non-volatile memory; (3)Low current during configuration and near-zero standby mode current; (4)2.7-V to 3.6-V operation; (5)Re-programmable memory with more than 100,000 erase/program cycles; (6)Write protection support for memory sectors using status register bits; (7)In-system programming support with SRunner software driver.
