K4T51163QG-HCE6

DDR2 SDRAM, FBGA, 1.8V ± 0.1V Power Supply, 4 Banks, On Die Termination, 50ohm ODT, 200 MHz fCK

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~1.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~1.90

PartNumber:: K4T51163QG-HCE6

Brand:: Samsung semiconductor - SAMSUNG | Pack: FBGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-23

From Other Seller

Part Number:K4T51163QG-HCE6
US $1.35 - 1.90
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The K4T51163QG-HCE6 is a 512Mb G-die DDR2 SDRAM.

Parametrics

K4T51163QG-HCE6 absolute maximum ratings: (1)VDD Voltage on VDD pin relative to VSS: - 1.0 V to 2.3 V; (2)VDDQ Voltage on VDDQ pin relative to VSS: - 0.5 V to 2.3 V; (3)VDDL Voltage on VDDL pin relative to VSS: - 0.5 V to 2.3 V; (4)VIN, VOUT Voltage on any pin relative to VSS: - 0.5 V to 2.3 V; (5)TSTG Storage Temperature: -55 to +100 ℃.

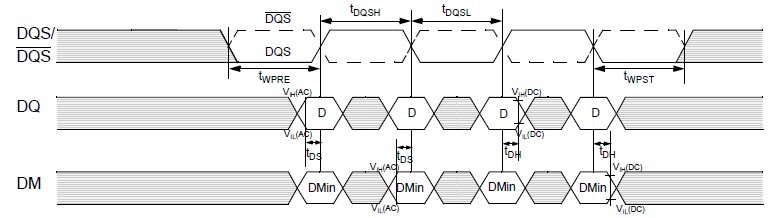

Features

K4T51163QG-HCE6 features: (1)JEDEC standard VDD = 1.8V ± 0.1V Power Supply; (2)VDDQ = 1.8V ±0.1V; (3)200 MHz fCK for 400Mb/sec/pin, 267MHz fCK for 533Mb/sec/; (4)pin, 333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/; (5)sec/pin; (6)4 Banks; (7)Posted CAS; (8)Programmable CAS Latency: 3, 4, 5, 6; (9)Programmable Additive Latency: 0, 1 , 2 , 3, 4 , 5; (10)Write Latency(WL) = Read Latency(RL) -1; (11)Burst Length: 4 , 8(Interleave/Nibble sequential); (12)Programmable Sequential / Interleave Burst Mode; (13)Bi-directional Differential Data-Strobe (Single-ended datastrobe is an optional feature); (14)Off-Chip Driver(OCD) Impedance Adjustment; (15)On Die Termination; (16)Special Function Support -50ohm ODT; -High Temperature Self-Refresh rate enable; (17)Average Refresh Period 7.8us at lower than TCASE 85℃, 3.9us at 85℃ < TCASE < 95 ℃; (18)All of products are Lead-Free, Halogen-Free, and RoHS compliant.
