Product Summary
The IL-P3-1024B is a image sensor. Fast and sensitive, DALSA IL-P3-1024B has been designed and fabricated using the industry most sophisticated technology. The IL-P3-1024B delivers consistently high image quality, and its single output design reduces the cost and complexity of support electronics.
Parametrics
IL-P3-1024B absolute maximum ratings: (1)Storage Temp: -20 to 80℃; (2)Operating Temp: -20 to 60℃; (3)Voltage on CR1, CR2, VSTOR, TCK, PR, VLS with respect to VBB: -10 to 18V; (4)Voltage on OS, VDD, VOD, VSS, VPR, VHIGH, CRLAST, RST, VSET, VLOW with respect to VBB: 0 to 18V; (5)Voltage on OSn with respect to VSS: VDD-8 to VDD+1V; (6)Amplifier Load Current (ILOAD): per output 20mA.
Features
IL-P3-1024B features: (1)Single output, 40MHz data rate; (2)Surface gated photodiodes for low lag; (3)Line rate to 73kHz (512 model); (4)Low voltage clocks (<5V); (5)14μm (H) x 14μm (V) pixels, 100% fill factor; (6)512, 1024, or 2048 pixels; (7)Antiblooming and exposure control; (8)Highly sensitive, with responsivity reaching 43V/(μJ/cm2).

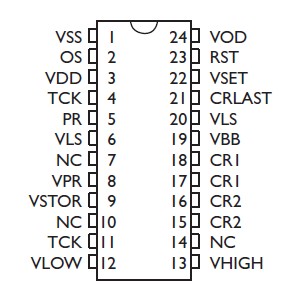

Diagrams
 |
