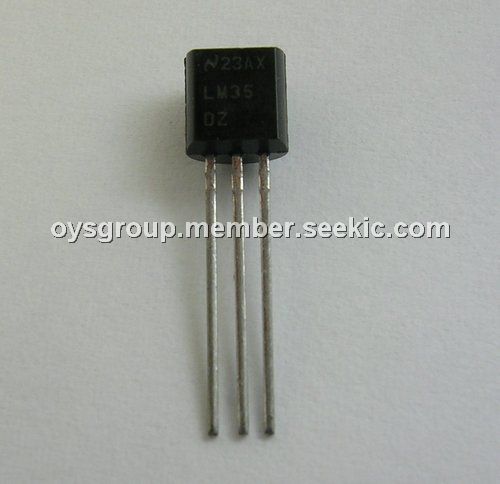

LM35DZ

precision centigrade temperature sensor, 0.1 W, 1 mA, Low self-heating, 60 μA, Low impedance output

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.70

PartNumber:: LM35DZ

Brand:: National Semiconductor - NS | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-23

From Other Seller

Part Number:LM35DZ
US $0.50 - 0.70
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM35DZ is a precision integrated-circuit temperature sensor, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM35DZ has an advantage over linear temperature sensors calibrated in Kelvin, as the user is not required to subtract a large constant voltage from its output to obtain convenient Centigrade scaling. The LM35DZ does not require any external calibration or trimming to provide typical accuracies of ±1/4℃ at room temperature and ±3/4℃ over a full -55 to +150℃ temperature range. Low cost of the LM35DZ is assured by trimming and calibration at the wafer level.

Parametrics

LM35DZ absolute maximum ratings: (1)Supply Voltage +35V to .0.2V; (2)Output Voltage +6V to .1.0V; (3)Output Current 10 mA; (4)Vapor Phase (60 seconds) 215℃; (5)Infrared (15 seconds) 220℃; (6)ESD Susceptibility (Note 11) 2500V.

Features

LM35DZ features: (1)Calibrated directly in Celsius (Centigrade); (2)Linear + 10.0 mV/℃ scale factor; (3)0.5℃ accuracy guaranteeable (at +25℃); (4)Rated for full -55 to +150℃ range; (5)Suitable for remote applications; (6)Low cost due to wafer-level trimming; (7)Operates from 4 to 30 volts; (8)Less than 60 μA current drain; (9)Low self-heating, 0.08℃ istill air; (10)Nonlinearity only ±1/4℃ typical; (11)Low impedance output, 0.1 W for 1 mA load.
