Product Summary

The MRF464 is a NPN silicon RF power transistor. It is designed primarily for applications as a high-power linear amplifier from 2.0MHz to 30MHz, in single sideband mobile, marine and base station equipment.

Parametrics

MRF464 absolute maximum ratings: (1)collector-emitter voltage:35V; (2)collector-base voltage:65V; (3)emitter-base voltage:4.0V; (4)collector current-continuous:10A; (5)total device dissipation:250W; (6)storage temperature range:-65℃ to +150℃.

Features

MRF464 features: (1)output power = 80W(PEP); (2)minimum gain=15dB; (3)efficiency=40%; (4)intermodulation distortion=-32dB(max).

Diagrams

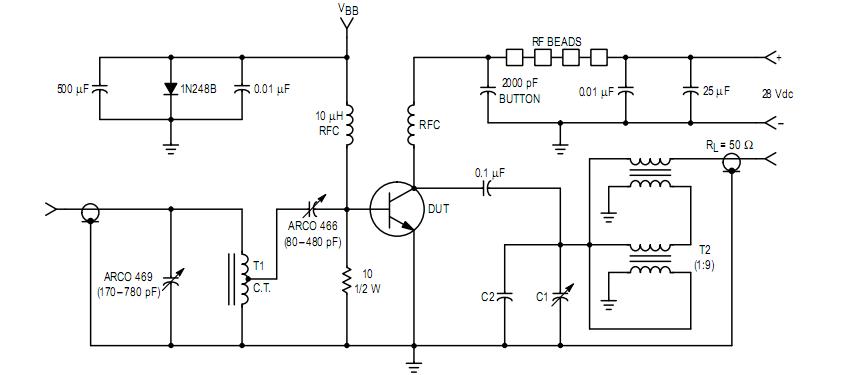

MRF464 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRF464
MRF464
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $39.60
1-10: $33.00
10-25: $29.70
25-50: $26.40
