Product Summary

The PM44-11BG is a Single port Magnetic.

Parametrics

PM44-11BG absolute maximum ratings: (1)turns ratio: 1CT:1CT; (2)leakage inductance: 0.4μH max; (3)insertion loss: -1.0 at 0.1 to 100MHz; (4)return loss: -18.0 at 0.5 to 30MHz; -16.5 at 40MHz; -14.5 at 50MHz; -12.0 at 60 to 80MHz.

Features

PM44-11BG features: (1)Meet The Isolation,Insertion Loss and Return Loss Requirements of IEEE802.3; (2)16Pin SOIC Low Profile Package Isolation Modules.

Diagrams

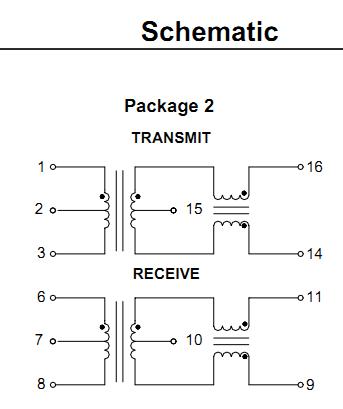

PM44-11BG schematic
