Product Summary
The X9511WP is a single push button controlled potentiometer. The Intersil X9511WP is a push button controlled potentiometer that is ideal for push button controlled resistance trimming. The X9511WP is a resistor array composed of 31 resistive elements. Between each element and at either end are tap points accessible to the wiper element. The position of the wiper element is controlled by the PU and PD inputs. The position of the wiper can be automatically stored in E2 memory and then be recalled upon a subsequent power-on operation.
Parametrics
X9511WP absolute maximum ratings: (1)Temperature under bias: -65℃ to +135℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on PU, PD, and VCC with respect to VSS: -1V to +7V; (4)Voltage on VH and VL referenced to VSS: -8V to +8V; (5)ΔV = |VH - VL|: 10V; (6)Lead temperature (soldering 10 seconds): +300℃; (7)Wiper current: ±1mA; (8)ESD Rating Human Body Model: 2.5kV; (9)Machine Model: 250V.
Features
X9511WP features: (1)Push button controlled; (2)Low power CMOS. Active current, 3mA max. Standby current, 100μA typical; (3)31 resistive elements. Temperature compensated. ±20% end to end resistance range. -5V to +5V range; (4)32 wiper tap points.

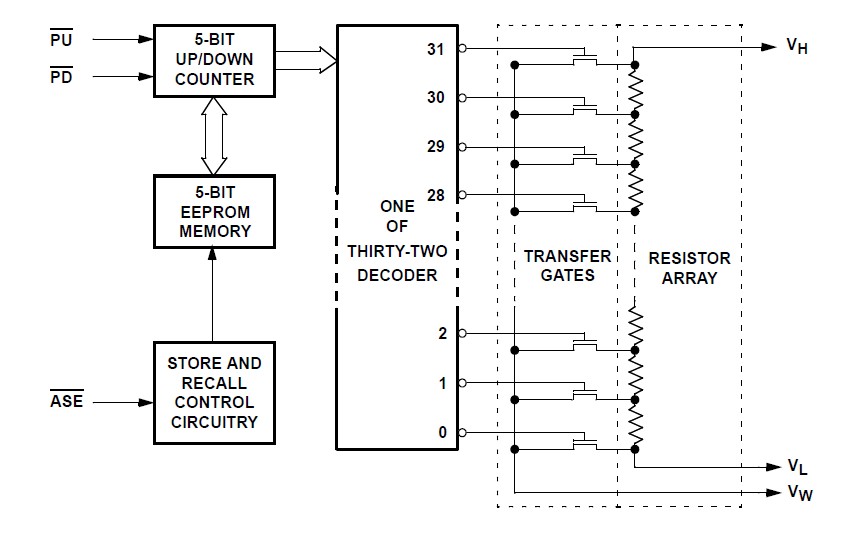

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X9511WP |
|
IC DIGITAL POT 10K 32TP 8DIP |
Data Sheet |
Negotiable |
|
||||||
|
X9511WPI |
|
IC DIGITAL POT 10K 32TP 8DIP |
Data Sheet |
Negotiable |
|
||||||
|
X9511WPIZ |
|
IC XDCP SGL PB 32TAP 10K 8-DIP |
Data Sheet |
|
|
||||||
|
X9511WPZ |
|
IC XDCP SGL 32TAP 10K 8-PDIP |
Data Sheet |
|
|
||||||
