Product Summary

The AD202JN is a general purpose, two-port, transformer-coupled isolation amplifier that may be used in a broad range of applications where input signals must be measured, processed, and/or transmitted without a galvanic connection. The AD202JN provides total galvanic isolation between the input and output stages of the isolation amplifier through the use of internal transformer-coupling. The applications of the AD202JN are Multichannel Data Acquisition, Current Shunt Measurements, Motor Controls, Process Signal Isolation, High Voltage Instrumentation Amplifier.

Parametrics

AD202JN general specifications: (1)output Frequency:25 kHz Nominal; (2)output Voltage:15 V p-p Nominal; (3)Fan-Out:32 Max; (4)Input Voltage:15 V ± 5%; (5)Supply Current: Unloaded:35 mA, +VISO or –VISO Adds:0.7 mA.

Features

AD202JN features: (1)Small Size: 4 Channels/lnch; (2)High Accuracy: ±0.025% Max Nonlinearity (K Grade); (3)High CMR: 130 dB (Gain = 100 V/V); (4)High CMV Isolation: ±2000 V pk Continuous (K Grade)(Signal and Power); (5)Isolated Power Outputs; (6)Uncommitted Input Amplifier.

Diagrams

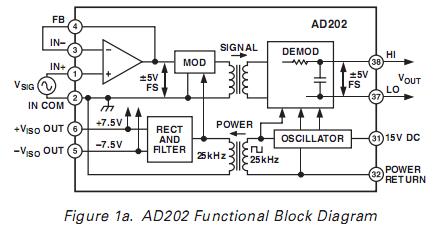

AD202JN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD202JN
AD202JN

IC AMP ISOL 2KHZ DUAL LP 38DIP
Data Sheet
0-1: $29.55
1-10: $27.81
10-100: $24.86
100-250: $23.47
250-500: $23.18
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD2012LB-G70-LF
AD2012LB-G70-LF
ADDA
Fans & Blowers 20mm 12VDC IMPEDENCE
Data Sheet
0-1: $10.20
1-10: $9.60
10-25: $9.00
25-50: $8.40
AD202JN
AD202JN

IC AMP ISOL 2KHZ DUAL LP 38DIP
Data Sheet
0-1: $29.55
1-10: $27.81
10-100: $24.86
100-250: $23.47
250-500: $23.18
AD204KY
AD204KY

IC AMP ISOL 5KHZ QUAD LP 38SIP
Data Sheet
0-1: $29.43
AD204KN
AD204KN

IC AMP ISOL 5KHZ QUAD LP 38DIP
Data Sheet
0-1: $29.43
AD204JY
AD204JY

IC AMP ISOL 5KHZ QUAD LP 38SIP
Data Sheet
0-1: $27.60
AD204JN
AD204JN

IC AMP ISOL 5KHZ QUAD LP 38DIP
Data Sheet
0-1: $27.60
