Product Summary

The AD595AQ is a complete instrumentation amplifier and thermocouple cold junction compensator on a monolithic chip. It combines an ice point reference with a precalibrated amplifier to produce a high level output directly from a ther-mocouple signal. Pin-strapping options allow the AD595AQ to be used as a linear amplifier-compensator or as a switched output setpoint controller using either fixed or remote setpoint control. The AD595AQ can be used to amplify its compensation voltage directly, thereby converting it to a stand-alone Celsius transducer with a low impedance voltage output.

Parametrics

AD595AQ absolute maximum ratings: (1)+VS to –VS: 36V; (2)Common-Mode Input Voltage: -VS-0.15 to VS; (3)Differential Input Voltage: -VS to VS; (4)Alarm Voltages, +ALM:-VS to -VS+36; –ALM: -VS to VS; (5)Operating Temperature Range: -55 to 125℃; (6)Output Short Circuit to Common: indefinite.

Features

AD595AQ features: (1)Pretrimmed for Type J (AD594) or Type K (AD595) Thermocouples; (2)Can Be Used with Type T Thermocouple Inputs; (3)Low Impedance Voltage Output: 10 mV/℃; (4)Built-In Ice Point Compensation; (5)Wide Power Supply Range: +5 V to 615 V; (6)Low Power: <1 mW typical; (7)Thermocouple Failure Alarm; (8)Laser Wafer Trimmed to 1℃ Calibration Accuracy; (9)Setpoint Mode Operation; (10)Self-Contained Celsius Thermometer Operation; (11)High Impedance Differential Input; (12)Side-Brazed DIP or Low Cost Cerdip.

Diagrams

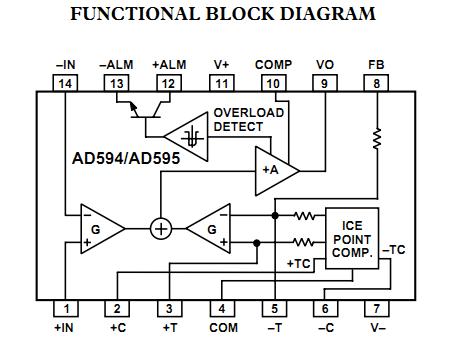

AD595AQ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD595AQ
AD595AQ


IC THERMOCOUPLE A W/COMP 14CDIP

Data Sheet

0-1: $9.25
1-25: $7.78
25-100: $7.15
100-250: $6.52
250-500: $6.10
500-1000: $5.61
