ADSP-TS202SABP-050

TigerSHARC embedded processor, 2.0 ns, 40bit, 500 MHz, DRAM memory, BGA, 12M

Rated 5 Rating 5 | reviews | Write a review

Price:: US $120.00~170.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $120.00~170.00

PartNumber:: ADSP-TS202SABP-050

Brand:: Analog Devices - ADI | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-10

From Other Seller

Part Number:ADSP-TS202SABP-050
US $120.00 - 170.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

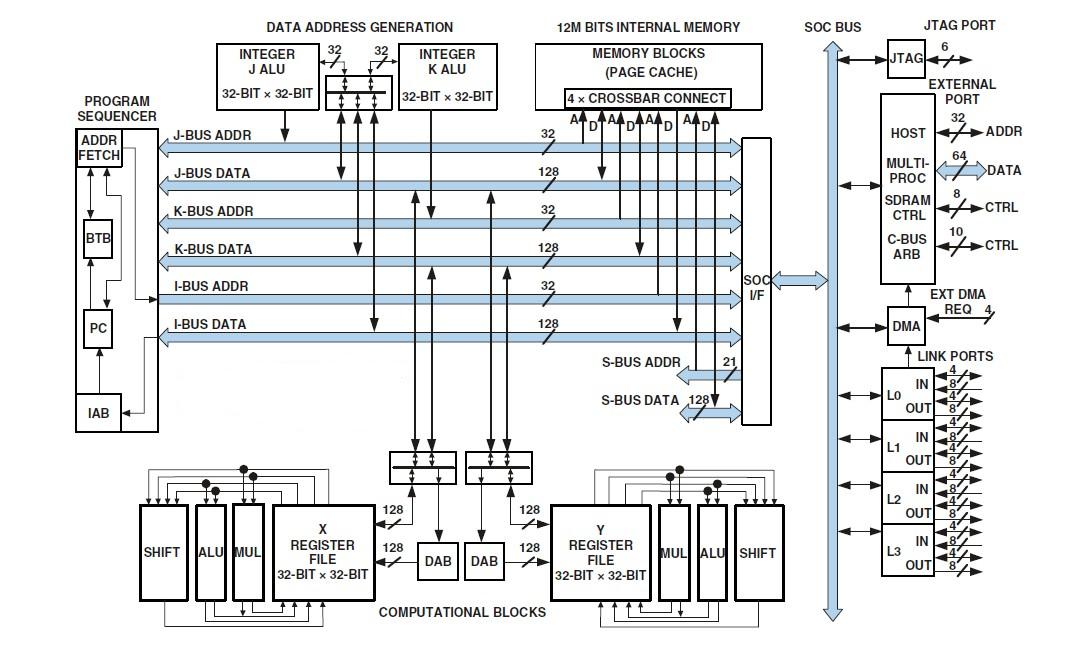

The ADSP-TS202SABP-050 is a TigerSHARC embedded processor. The ADSP-TS202SABP-050 TigerSHARC processor is an ultrahigh performance, static superscalar processor optimized for large signal processing tasks and communications infrastructure. The ADSP-TS202SABP-050 combines very wide memory widths with dual computation blocks—supporting floating-point (IEEE 32-bit and extended precision 40-bit) and fixed-point processing to set a new standard of performance for digital signal processors. The TigerSHARC static superscalar architecture of the ADSP-TS202SABP-050 lets the DSP execute up to four instructions each cycle, performing 24 fixed-point (16-bit) operations or six floating-point operations.

Parametrics

ADSP-TS202SABP-050 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDD): –0.3 V to +1.4 V; (2)Analog (PLL) Supply Voltage (VDD_A): –0.3 V to +1.4 V; (3)External (I/O) Supply Voltage (VDD_IO): –0.3 V to +3.5 V; (4)External (DRAM) Supply Voltage (VDD_DRAM): –0.3 V to +2.1 V; (5)Input Voltage: –0.63 V to +3.93 V; (6)Output Voltage Swing: –0.5 V to VDD_IO+0.5 V; (7)Storage Temperature Range: –65℃ to +150℃.

Features

ADSP-TS202SABP-050 features: (1)500 MHz, 2.0 ns instruction cycle rate; (2)12M bits of internal on-chip DRAM memory; (3)25mm× 25 mm (576-ball) thermally enhanced ball grid array package; (4)Dual-computation blocks each containing an ALU, a multiplier, a shifter, and a register file; (5)Dual-integer ALUs, providing data addressing and pointer manipulation; (6)Single-precision IEEE 32-bit and extended-precision 40-bit floating-point data formats and 8, 16, 32 and 64-bit fixed-point data formats.
