HEF4013BT

Dual D-type flip-flop, SOP14, 14-lead SO, plastic, 7 to 14 MHz clock pulse frequency

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.09 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.07~0.09

PartNumber:: HEF4013BT

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Benson Ou's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-23

From Other Seller

Part Number:HEF4013BT
US $0.07 - 0.09
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

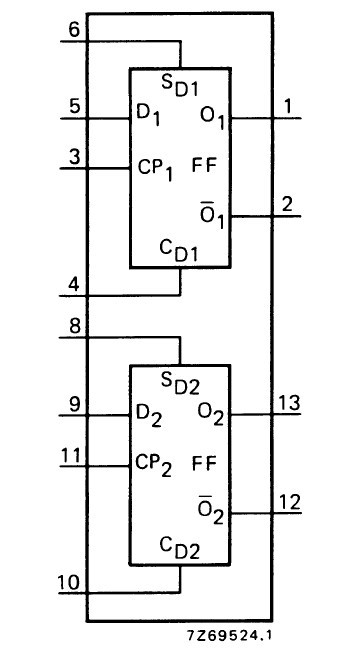

The HEF4013BT is a dual D-type flip-flop which features independent set direct (SD), clear direct (CD), clock inputs (CP) and outputs(O, O). Data is accepted when CP is LOW and transferred to the output on the positive-going edge of the clock. The active HIGH asynchronous clear-direct (CD) and set-direct (SD) are independent and override the D or CP inputs. The outputs are buffered for best system performance. Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times.

Parametrics

HEF4013BT absolute maximum ratings: (1)VDD supply voltage: -0.5 to +18 V; (2)IIK input clamping current VI < -0.5 V or VI > VDD + 0.5 V: ±10 mA; (3)VI input voltage: -0.5 to VDD + 0.5 V; (4)IOK output clamping current VO < -0.5 V or VO > VDD + 0.5 V: ±10 mA; (5)II/O input/output current: ±10 mA; (6)IDD supply current: 50 mA; (7)Tstg storage temperature: -65 +150℃; (8)Tamb ambient temperature: 500 mW; (9)P power dissipation per output : 100 mW.

Features

HEF4013BT features: (1)Propagation delays: 110 to 220 ns; (2)Output transition times: 60 to 120 ns; (3)Set-up time: 40 to 20 ns; (4)Hold time: 20 to 0 ns; (5)Minimum clock: 60 to 30 ns; (6)Recovery time: 15 to -5 ns; (7)Maximum clock pulse frequency: 7 to 14 MHz.
