Product Summary

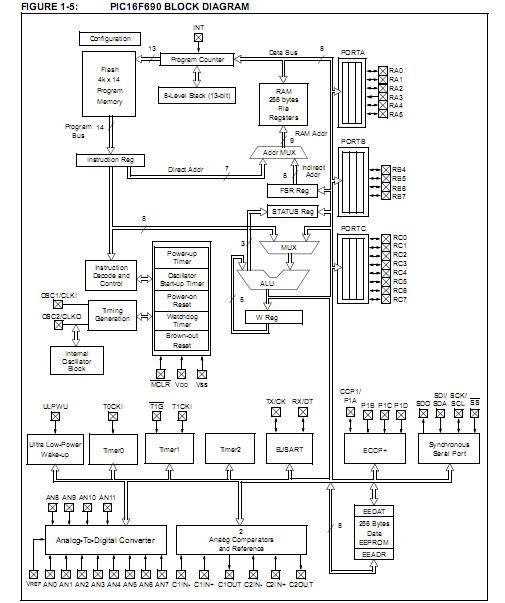

The PIC16F690-I/SS is a 20-Pin Flash-Based, 8-Bit CMOS Microcontroller. It has a 13-bit program counter capable of addressing an 8K * 14 program memory space. When accessing the program memory block of the PIC16F690-I/SS, the EEDAT and EEDATH registers form a 2-byte word that holds the 14-bit data for read/write, and the EEADR and EEADRH registers form a 2-byte word that holds the 12-bit address of the EEPROM location being read.

Parametrics

PIC16F690-I/SS absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:-0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss:-0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD + 0.3V); (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:300 mA; (8)Maximum current into VDD pin:250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTC (combined):200 mA; (14)Maximum current sourced PORTA, PORTB and PORTC (combined):200 mA.

Features

PIC16F690-I/SS features: (1)Interrupt capability; (2)8-level deep hardware stack; (3)Direct, Indirect and Relative Addressing modes; (4)Power-Saving Sleep mode; (5)Wide operating voltage range (2.0V-5.5V); (6)Industrial and Extended Temperature range; (7)Power-on Reset (POR); (8)Power-up Timer (PWRTE) and Oscillator Start-up Timer (OST); (9)Brown-out Reset (BOR) with software control option; (10)Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (11)Multiplexed Master Clear/Input pin; (12)Programmable code protection; (13)High current source/sink for direct LED drive; (14)Interrupt-on-Change pin; (15)Individually programmable weak pull-ups; (16)Ultra Low-Power Wake-up (ULPWU); (17)16-bit Capture, max resolution 12.5 ns; (18)Compare, max resolution 200 ns; (19)10-bit PWM with 1, 2 or 4 output channels, programmable “dead time”, max frequency 20 kHz; (20)PWM output steering control.
