Product Summary
The ATMEGA168-10AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA168-10AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA168-10AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET; (4)with respect to Ground: -0.5V to VCC+0.5V; (5)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (6)Maximum Operating Voltage: 6.0V; (7)DC Current per I/O Pin: 40.0 mA; (8)DC Current VCC and GND Pins: 200.0 mA.
Features
ATMEGA168-10AU features: (1)Two 8-bit timer/counters with separate prescaler and compare mode; (2)One 16-bit timer/counter with separate prescaler, compare mode, and capture mode; (3)Real time counter with separate oscillator; (4)Six PWM channels; (5)8-channel 10-bit ADC in TQFP and QFN/MLF package; (6)6-channel 10-bit ADC in PDIP Package; (7)Programmable serial USART; (8)Master/slave SPI serial interface; (9)Byte-oriented 2-wire serial interface (Philips I2C compatible); (10)Programmable watchdog timer with separate on-chip oscillator; (11)On-chip analog comparator; (12)Interrupt and wake-up on pin change.

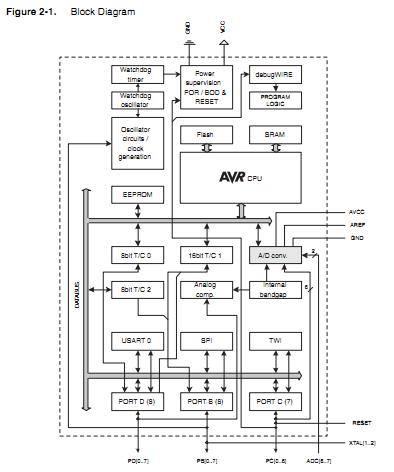

Diagrams
 |
