Product Summary

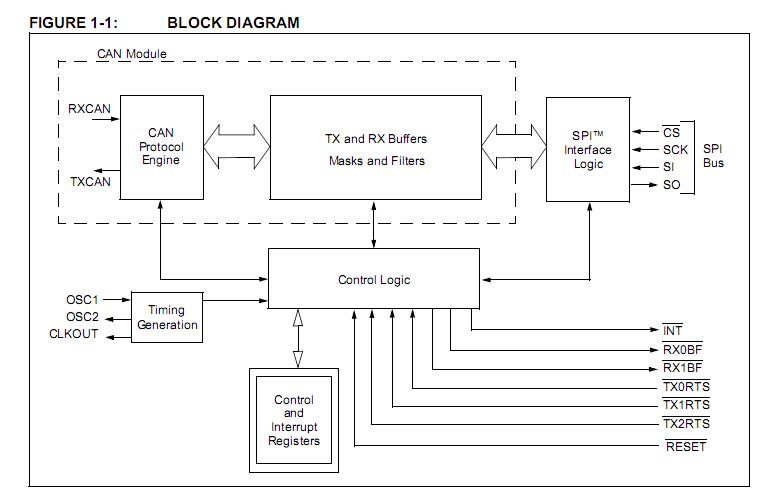

The MCP2515-I/SO is a stand-alone Controller Area Network (CAN) controller that implements the CAN specification, version 2.0B. It is capable of transmitting and receiving both standard and extended data and remote frames. The MCP2515-I/SO has two acceptance masks and six acceptance filters that are used to filter out unwanted messages, thereby reducing the host MCUs overhead. The MCP2515-I/SO interfaces with microcontrollers (MCUs) via an industry standard Serial Peripheral Interface (SPI).

Parametrics

MCP2515-I/SO absolute maximum ratings: (1)VDD:7.0V; (2)All inputs and outputs w.r.t. VSS:-0.6V to VDD +1.0V; (3)Storage temperature:-65℃ to +150℃; (4)Ambient temp. with power applied:-65℃ to +125℃; (5)Soldering temperature of leads (10 seconds):+300℃.

Features

MCP2515-I/SO features: (1)Implements CAN V2.0B at 1 Mb/s:0 to 8 byte length in the data field, Standard and extended data and remote frames ; (2)Receive buffers, masks and filters:Two receive buffers with prioritized message storage,Six 29-bit filters,Two 29-bit masks; (3)Data byte filtering on the first two data bytes(applies to standard data frames); (4)Three transmit buffers with prioritizaton and abort features; (5)High-speed SPI Interface (10 MHz):SPI modes 0,0 and 1,1; (6)One-shot mode ensures message transmission is attempted only one time; (7)Clock out pin with programmable prescaler:Can be used as a clock source for other device(s); (8)Start-of-Frame (SOF) signal is available for ; (9)monitoring the SOF signal:Can be used for time-slot-based protocols and/or bus diagnostics to detect early bus degredation; (10)Low-power CMOS technology:Operates from 2.7V to 5.5V,5 mA active current (typical),1μA standby current (typical) (Sleep mode); (11)Temperature ranges supported:Industrial (I): -40℃ to +85℃,Extended (E): -40℃ to +125℃.
