Product Summary

The OPT101 is a monolithic photodiode with on-chip transimpedance amplifier. Output voltage increases linearly with light intensity. The amplifier OPT101 is designed for single or dual power supply operation, making it ideal for battery operated equipment.

Parametrics

OPT101 absolute maximum ratings: (1)Supply Voltage (VS to "Common" or pin 3): 0 to +36V; (2)Output Short-Circuit (to ground): Continuous; (3)Operating Temperature: –25℃ to +85℃; (4)Storage Temperature: –25℃ to +85℃; (5)Junction Temperature: +85℃; (6)Lead Temperature (soldering, 10s): +300℃.

Features

OPT101 features: (1)Single supply: +2.7 to +36V; (2)Photodiode size: 0.090 x 0.090 inch; (3)Internal 1MW feedback resistor; (4)High responsivity: 0.45A/W (650nm); (5)Bandwidth: 14kHz at RF = 1MW; (6)Low quiescent current: 120mA; (7)Available in 8-pin dip, 5-pin sip, and 8-lead surface mount packages.

Diagrams

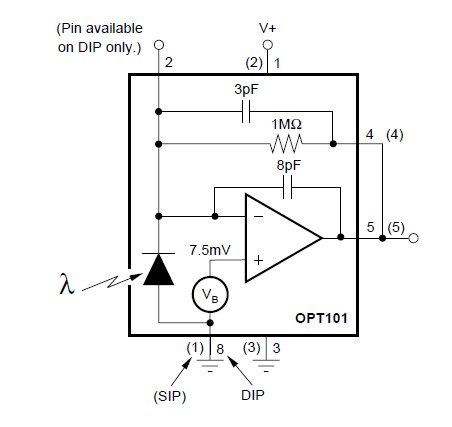

OPT101 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPT101
OPT101
Other

Data Sheet
Negotiable
OPT101T
OPT101T
Other

Data Sheet
Negotiable
OPT101P-JG4
OPT101P-JG4
Texas Instruments
Light To Frequency & Light To Voltage Mono Photodiode & Sngl-Sply Trans Amp
Data Sheet
0-1: $3.71
1-10: $3.34
10-25: $2.97
25-50: $2.80
OPT101P-J
OPT101P-J
Texas Instruments
Light To Frequency & Light To Voltage Mon Photodiode & Sgl Supply Transimp Amp
Data Sheet
0-1: $3.71
1-10: $3.34
10-25: $2.97
25-50: $2.80
OPT101PG4
OPT101PG4
Texas Instruments
Light To Frequency & Light To Voltage Transimpedance Amp
Data Sheet
0-1: $3.71
1-10: $3.34
10-25: $2.97
25-50: $2.80
OPT101P
OPT101P
Texas Instruments
Light To Frequency & Light To Voltage TRANSIMPEDANCE AMPLIFIER
Data Sheet
0-1: $3.71
1-10: $3.34
10-25: $2.97
25-50: $2.80
