LPC2148FBD64

Product Summary

The LPC2148FBD64 is a microcontroller. It is based on a 32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combines the LPC2148FBD64 with embedded high-speed flash memory ranging from 32 kB to 512 kB. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. Due to its tiny size and low power consumption, the LPC2148FBD64 is ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale.

Parametrics

LPC2148FBD64 absolute maximum ratings: (1)supply voltage (core and external rail):-0.5V to +3.6V; (2)analog 3.3 V pad supply voltage:-0.5V to +4.6V; (3)input voltage on pin VBAT:-0.5V to +4.6V; (4)input voltage on pin VREF:-0.5V to +4.6V; (5)analog input voltage:-0.5V to +5.1V; (6)input voltage:-0.5V to +6.0V; (7)supply current:100mA; (8)ground current:100mA; (9)storage temperature:-65℃ to +150℃; (10)total power dissipation (per package):1.5W; (11)electrostatic discharge voltage:-4000V to +4000V.

Features

LPC2148FBD64 features: (1)Low power Real-Time Clock (RTC) with independent power and 32kHz clock input; (2)Multiple serial interfaces including two UARTs (16C550), two Fast I2C-bus (400 kbit/s), SPI and SSP with buffering and variable data length capabilities; (3)Vectored Interrupt Controller (VIC) with con?gurable priorities and vector addresses; (4)Up to 45 of 5 V tolerant fast general purpose I/O pins in a tiny LQFP64 package; (5)Up to 21 external interrupt pins available; (6)60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of 100 μs; (7)On-chip integrated oscillator operates with an external crystal from 1 MHz to 25 MHz; (8)Power saving modes include Idle and Power-down; (9)Individual enable/disable of peripheral functions as well as peripheral clock scaling for additional power optimization; (10)Processor wake-up from Power-down mode via external interrupt or BOD.

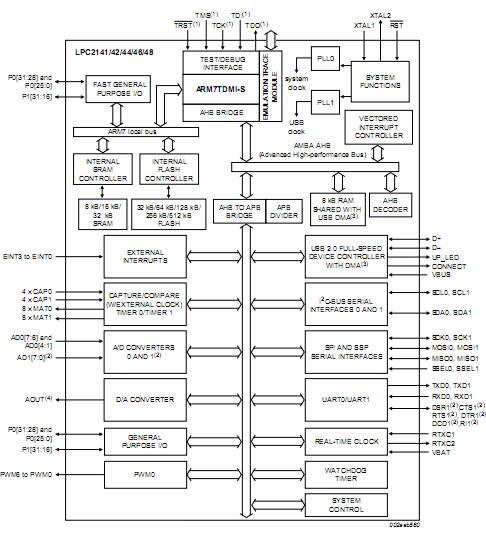

Diagrams
