Product Summary
The LT1001CN8 is a Precision Operational Amplifier. Input bias and offset currents, common-mode and power supply rejection of the LT1001CN8 offer guaranteed performance which were previously attainable only with expensive, selected grades of other devices. A beneficial by-product of lower dissipation is decreased warm-up drift. Output drive capability of the LT1001CN8 is also enhanced with voltage gain guaranteed at 10mA of load current. The applications of the device are Thermocouple amplifiers, Strain gauge amplifiers, Low level signal processing, High accuracy data acquisition.
Parametrics
LT1001CN8 absolute maximum ratings: (1)Supply Voltage:±22V; (2)Differential Input Voltage:±30V; (3)Input Voltage:±22V; (4)Output Short Circuit Duration:Indefinite; (5)Operating Temperature Range:0℃ to 125℃; (6)Storage: All Devices:–65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.):300℃.
Features
LT1001CN8 features: (1)Guaranteed Low Offset Voltage:60μV max; (2)Guaranteed Low Drift:1.0μV/℃ max; (3)Guaranteed Low Bias Current:4nA max; (4)Guaranteed CMRR:110dB min; (5)Guaranteed PSRR:106dB min; (6)Low Power Dissipation:80mW max; (7)Low Noise 0.3μVP-P.

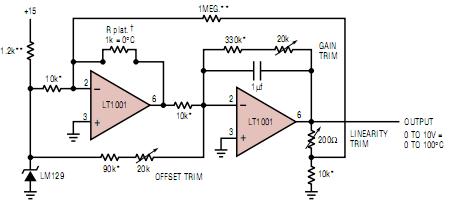

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1001CN8 |
|
IC PRECISION OP-AMP SINGLE 8-DIP |
Data Sheet |
|
|
||||||||||
|
LT1001CN8#PBF |
|
IC PRECISION OP-AMP SINGLE 8-DIP |
Data Sheet |
|
|
||||||||||
