Product Summary
The D8749H is the high-Speed, 8-Bit, single-Chip Hmos microcomputer which uses n-channel silicon gate MOS technology. The D8749H has 2k×8 of UV erasable EPROM and it is useful in preproduction or prototype applications where the software design has not yet been finalized or in system designs whose quanitities do not require a mask ROM.
Parametrics
D8749H absolute maximum ratings: (1)Operating temperature: 0 to +70℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin: -0.5 to 7.0V; (4)Power dissipation: 1.5w.
Features
D8749H features: (1)High performance 11MHZ operation; (2)Pin compatible with the μPD8048/8748; (3)Fully compatible with industry standard 8039/8049/8749; (4)1.36μs cycle time. All instructions 1 or 2 bytes; (5)Programmble interval timer/event counter; (6)2K×8 bytes of ROM, 128×8 bytes of RAM.

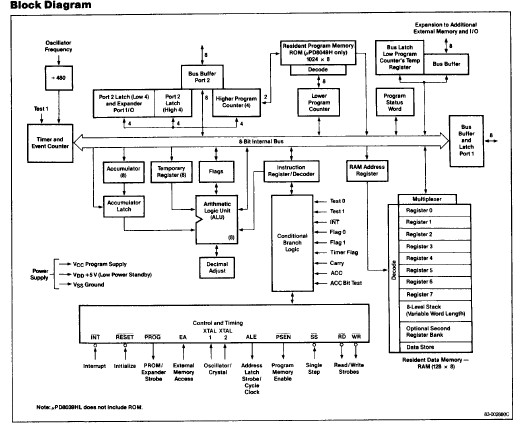

Diagrams
 |
